Model：Wonbio-48P
Brand：Shanghai Jingxin?
Specifications ：PCS

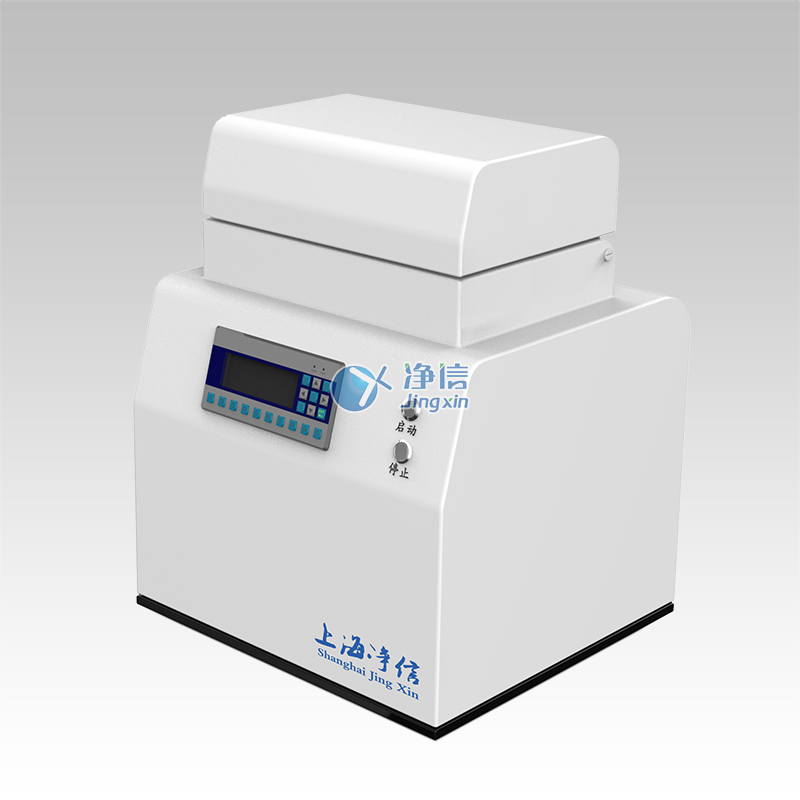

Introduction：Shanghai Jingxin?'s Wonbio-48P plant tissue processing system is a special, fast, efficient, multi-test tube consistent system. It can extract and purify the original DNA, RNA and protein from any source.
Product Description:
Shanghai Jingxin?'s Wonbio-48P plant tissue processing system (patented product, counterfeiting must be punished! 201620363493X) is a special, fast, efficient, multi-test tube consistent system. It can extract and purify the original DNA, RNA and protein from any source (including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, etc.).
Technical characteristics of plant tissue processing system:
Compared with other existing sample preparation methods, the Wonbio system has the advantages of wide versatility, high efficiency and flexibility. The system avoids the laborious, time-consuming, low-efficiency and many other shortcomings of traditional methods such as grinding, homogenization, and ultrasonic treatment, and can efficiently, quickly and stably lyse and purify nucleic acids and proteins of various types of samples.
Performance characteristics：
1. High efficiency and good effect:
Grind 12, 24, 48, 96 samples in 1 minute; save time and effort, and have small differences between batches and batches.
2. No cross-infection, no loss of samples：
The same procedure is set for the same tissue sample to obtain the same grinding effect; the working time is short, and the sample temperature rises small. The grinding process is in a completely closed state to avoid external contamination and cross-infection between samples, and will not cause sample loss.
3. The operation is simple, intuitive and concise:
LCD touch screen control, good human-computer interaction interface; intelligent program controller, can set the frequency and time parameters in time.
4. Good stability:
Vertical oscillation mode, sufficient grinding, better stability; low vibration during operation, noise less than 55dB.
5. Convenient low temperature operation:
The adapter with the sample can be immersed in liquid nitrogen for 1-2 minutes at the same time, and it can be ground for 15-30 seconds, saving liquid nitrogen
6. Good repeatability:
The same procedure is set for the same tissue sample to obtain the same grinding effect; the working time is short, and the sample temperature rises small.
The plant tissue processing system can grind samples：
1. Plant tissue: roots, stems, leaves, flowers, fruits, seeds, etc.
2. Animal tissue: brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone, etc.
3. Fungal bacteria: yeast, E. coli, etc.
4. Food and medicine: all kinds of food, tablets, etc.
5. Volatile samples: coal, oil shale, wax products, etc.
6. Plastics, polymers: PE, PS, textiles, resins, etc.

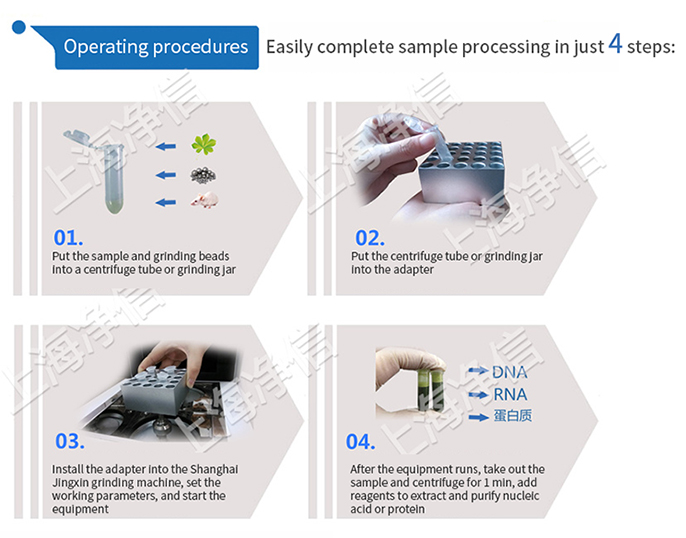

Operating procedures：
Technical parameter:
The main parameters | Parameter range |
Adapter handles sample size | 96*0.2ml; 48*2ml; 24*2ml; 8*5ml (15ml) or 4*50ml (centrifuge tube) |
Homogenization speed: | 0—70 HZ/S |
Display method: | LCD touch screen, can store 20 programs; adapter material: PTFE/aluminum alloy |
Grinding method: | Wet grinding, dry grinding, liquid nitrogen cryogenic grinding are all available |
Feed size | No requirement, adjust according to the adapter; |
Discharge size | ~5μm |
Fastening device with automatic center positioning | Yes |
Full protection: | Safety lock during work, full protection; |
Grinding kit material: | Aluminum alloy, PTFE |
Power supply: | Two-phase 220V/50HZ |
Working hours: | 0 seconds -9999 minutes, users can set by themselves |
Diameter of grinding ball: | 0.1-30mm; |
Grinding ball material: | Stainless steel, zirconia, tungsten carbide, quartz sand, etc. |
Accelerate: | Reach the ideal speed in 2 seconds |
Decelerate | Reach the ideal speed in 2 seconds |
Noise level | <55db |
Dimension | 340*400*560 ; |
Weight | 45KG |
Supporting reagents: | wonbio Plant RNA/DNA Extraction Kit |
Accessories | Adapter: 48*2ml PTFE adapter (standard); 24*2ml aluminum alloy adapter (standard); Grinding beads (zirconia or 316 stainless steel): 0.5mm; 1mm; 2mm; 3mm; 4mm; 5mm; 6mm; 8mm; 10mm; 500 3mm or 4mm, 100 6mm grinding beads (standard) |
Basic configuration:
? Tissuelyser?主機(jī)一臺(tái) | ? One set of 2ml adapter, one set of 2ml refrigeration adapter, one set of 2ml refrigeration fluid adapter (optional) |
| |
? 1000 5MM grinding beads. 1000 5MM ceramic grinding beads | ? One set of special bead gun (optional) |
|
|
Experimental case:
1. The experimental method of Jingxin plant tissue grinder to grind rice leaves | 2. High-throughput grinding of corn seeds to extract nucleic acid and protein |
|
|
Optional accessories:
Shanghai Jingxin is equipped with complete DNA, RNA and protein extraction kits for various samples of animals, plants, microorganisms, etc., which can extract target components quickly, efficiently, stably and in batches.
Extract objects | Jingxin supporting kit | |
Animal tissue | DNA | jingxin-1 |
RNA | jingxin-2 | |
Protein | jingxin-3 | |
Plant tissue | DNA | jingxin-4 |
RNA | jingxin-5 | |
Protein | jingxin-6 | |
Microoganism | DNA | jingxin-7 |
RNA | jingxin-8 | |
Protein | jingxin-9 | |
