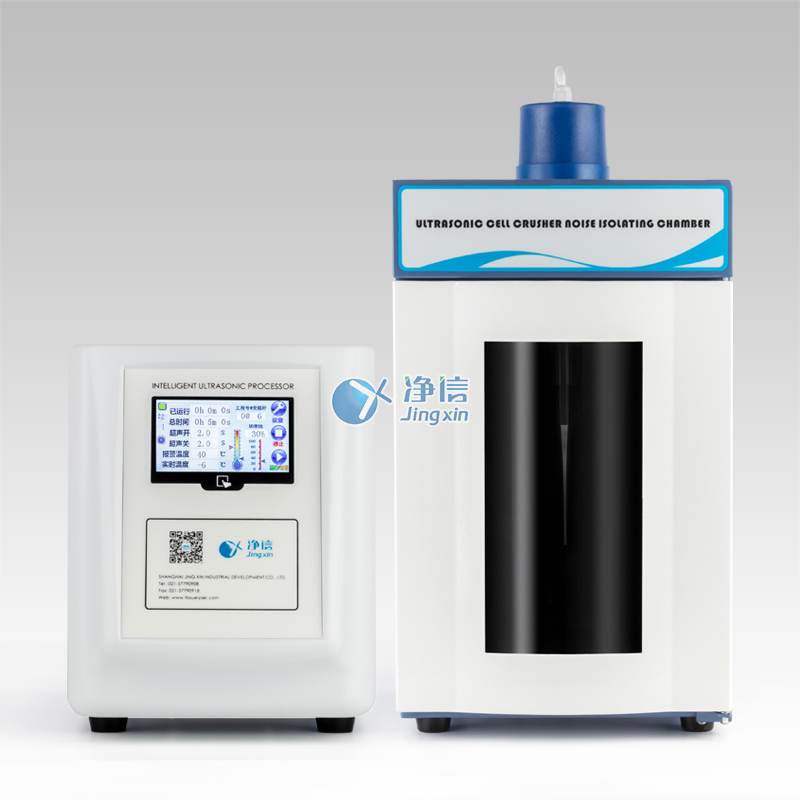

Ultrasonic pulverizer is a multi-functional and multi-purpose instrument that uses strong ultrasound to produce cavitation effects in liquids and ultrasonically treat substances. It can be used for the crushing of various animal and plant cells and virus cells. It can also be used for emulsification, Separation, homogenization, extraction, defoaming, cleaning and acceleration of chemical reactions, etc. It is widely used in biochemistry, microbiology, medicinal chemistry, surface chemistry, physics, zoology and other fields.
Features:
1. A new generation of products, complete functions, beautiful appearance, reliable performance, using 4.3-inch TFT touch screen display
2. High degree of intelligence, centralized control by the central computer, ultrasonic time and power can be set arbitrarily
3. Sample temperature detection display, frequency microcomputer tracking, automatic fault alarm
4. A matching export hot-selling soundproof box can reduce the noise by more than 70%
5. A set of titanium alloy horns can be used for continuous ultrasound for more than one hour
technical parameter:
Main parameters | arameter range |
Display method: | 4.3 inch TFT touch screen display, optional 7 inch full touch screen |
Single ultrasound time: | 0.1-9.9S |
Single gap time: | 0.1-9.9S |
Total working time: | 1-999M |
frequency: | 19.5-20.5KHz |
power: | 20- 1200W（1%-99%）adjustable |
Broken capacity: | 10-1000ML (customizable 1-1000ML) |
Temperature control range: | Room temperature -90 degrees (optional low temperature constant temperature) |
The alarm functions are: | Temperature, time, overload, no load |
Random horn: | Φ20 |
Optional horn: | Φ10、15、22 |
Duty cycle: | 0.1-99.9% |
power supply: | 220V±5%/ 50Hz (customizable 110V) |
Power box + transducer weight: | 18kg |
Power supply chassis size and net weight: | 42×28×22（CM）;16kg |
Features: | Use PWM to control the switching power supply, the power is continuously adjustable, the stability is good, and 50 sets of experimental parameters can be stored |
